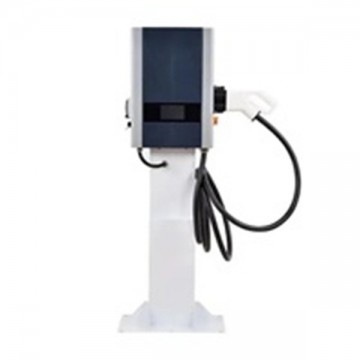

Our 7kW DC EV Charger Station offers efficient and reliable charging solutions with a 90V-265V input rating and is compatible with CCS1 and CCS2 connectors. Designed for both residential and commercial use, it supports a wide range of charging protocols, including CHAdeMO 2.0, DIN 70121, ISD1S118, IEC61851-23, and IEC61851-24. With a power factor greater than 0.99 and an efficiency of 95%, it ensures optimal performance. The charger provides an output voltage range of 200-750V DC and can deliver a maximum output current of 20A. The user interface includes a TFT-LCD touch panel and push buttons for easy operation. Built to withstand extreme conditions, it operates in temperatures from -40°C to 85°C and at altitudes up to 2000 meters. The charger is also equipped with a 5-meter cable (for CHAdeMO, CCS, or GB/T) and is customizable. It meets the EN61851-1 regulation and is certified with CE and ROHS for safety and environmental compliance. The charger is available in both wall-mounted (22kg) and upright (25kg) configurations, with packing dimensions of 548x378x160mm and 1500x520x250mm, respectively.For more，know more about China Manufacturers.
DC Wallbox EV Charger
